Parameters

• Model Name

  Saturn-S2000
  Saturn-S2200

• Audio Indicator

  Internal speaker

• Barrier Material

  Light gray transparent acrylic (305*555*10mm) (standard) /Light gray transparent acrylic (380*555*10mm) (optional) When the lane width is 900-1200mm, stainless steel barriers are required.

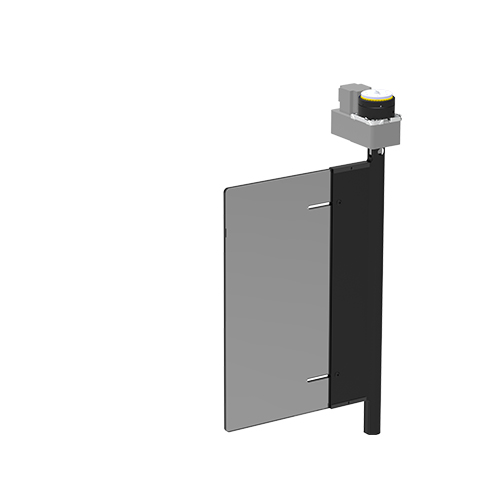

• Barrier Movement

  Swing

• Chassis Colour

  Gray (Standard)

• Chassis Material

  Stainless steel (SUS304) (Chassis Body) / Aluminum Alloy (Gate Column)

• Clutch

  Equipped

• Controller

  Compatible with C3 / InBio Series or 3rd-party controller

• Credential Options

  Under mount RFID reader: (support model: Pro ID Series, KR Series)
  Under mount fingerprint reader: FR1200 / FR1500S

• Dimension with Packing (L*W*H)

  Saturn-S2000: 1580 * 340 * 1270 (mm) (2pcs)
  Saturn-S2200: 1580 * 340 * 1270 (mm

• Emergency Mode

  Support (swing barrier open automatically)

• Flow Rate

  Facial Authentication: 15 passengers per minute
  QR Code: 30 passengers per minute
  RFID: 35 passengers per minute

• IR Sensors

  12 pairs (standard) ;18 pairs (Optional)

• Lane Width (mm)

  600~900mm (Optional) (Acrylic)
  Maximum 1200mm (Optional) (Stainless steel) (For two-wheeled motorcycle access)

• Lid Material

  Stainless steel & Polycarbonate

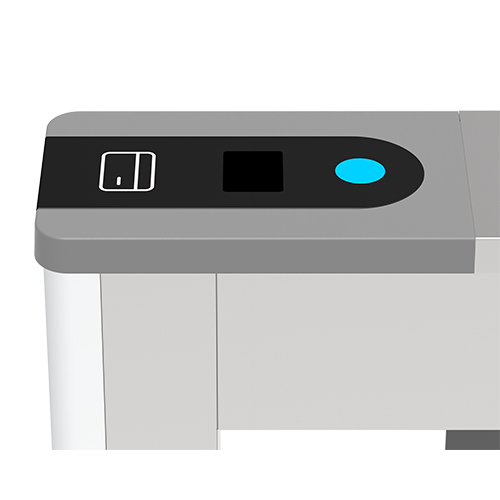

• Lid Options Authentication Methods

  Streamlined under mount options: QR Code / RFID
  Surface mount option: Facial Authentication

• MCBF

  5 million

• MTTR

  Less than 60 minutes

• Motherboard Communication

  Fire alarm port (relay)*1, RS485 port*1

• Motherboard Function

  System configuration, access control

• Motor

  DC brushless motor

• Movement Speed

  Average 1s per movement (Adjustable open/close timing)

• Noise Level

  Less than 60dB

• Packing Material

  Wooden

• Safety Features

  Voltage free contact input for fire alarm fail state
  automatic swing barrier open during power off

• Security Features

  Anti-tailgating, anti-pinch

• Security Level

  medium

• Site Preparation

  Flat & level finished floor
  (base plate in options for unfinished floor)

• Supported Software

  ZKBio CVSecurity

• Visual Indicator

  Top LED indicator:
  Blue=Door closed/stand by
  Green=Door opening
  Red=Door closing/alarm

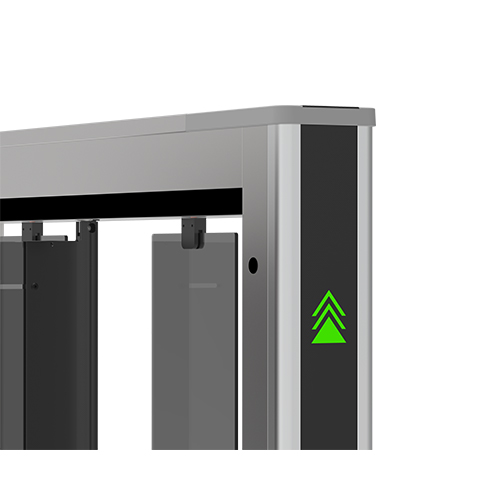

  Side LED indicator:
  Green=Lane available
  Red=Lane unavailable

Download

(Silver and above members can download after logging in)

• Name
• Size
• Update Time

• PDF

  Saturn-S2000 Series Data Sheet

  368.79KB

  2025-08-19
