The access gate is an intelligent access control device developed and manufactured by ZKTECO after years of research and development. This device seamlessly integrates mechanical, electronic, and microprocessor control systems with various reading andwriting technologies. By configuring different types of reading and writing devices, incorporating reliable safety protection mechanisms, and utilizing real-time alarm systems and directional guidance interfaces, it achieves coordinated intelligent control andmanagementofaccess points.
Model Name

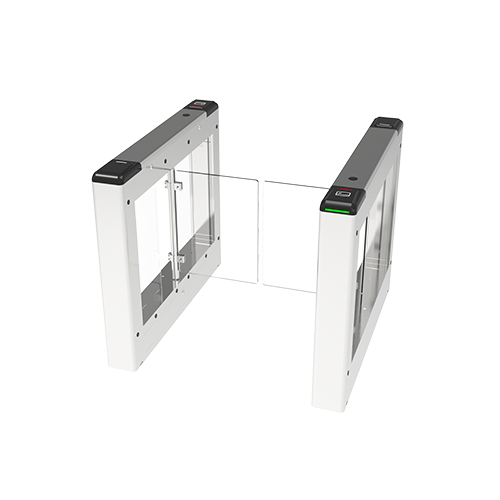

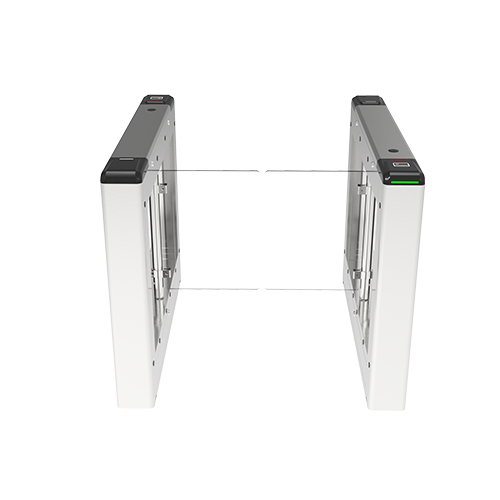

SBTL3000 (1Mainunit+1Subunit)

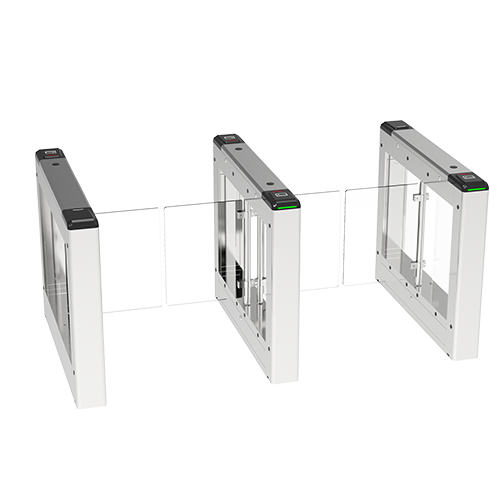

SBTL3200 (1dual-movement unit)
Chassis Material
SUS304 stainless steel, 1.2mm/0.8mm
Communication
RS232, RS485 optional
Motor
DC brushless motor
Channel Widt h
600mm-900mm
Face Recognition Hole
Standard face recognition hole plug included
Gross Weight
Bare unit: 28.5kg (main), 27kg (slave),
33.5kg (dual-movement)
Packaged: 35.5kg (main), 34kg (slave),
40.5kg (dual-movement)
Infrared Correlation
4 pairs (10 reserved installation positions
in total, expandable on demand)
Other Configurations
Internal wiring trough, stainless steel
maintenance wet wipes, expansion bolts,
certificate of conformity
Passing Speed
Normally closed mode: 30persons/min
Normally open mode:50persons/min
Side Cover Plate
Single channel: 4 pieces
Dual movement:2 pieces
(Silver and above members can download after logging in)
SBTL3000 Datasheet 2026
1.41MB
2026-04-17
