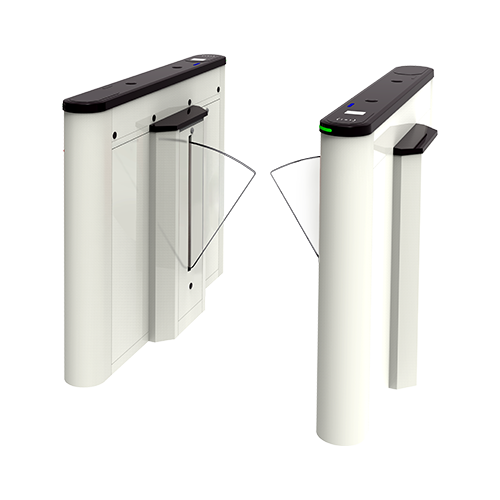

Saturn-F1000 Series

ZKTeco's Saturn-F1000 series flap barrier is a high-efficiency and designed for efficient access control for both indoor and outdoor scenarios.

Features

*High-Speed Operation
Fast opening and closing (under 1 second) enables smooth flow of up to 30 persons per minute, ideal for high-traffic areas.

*Advanced Security Protection
Equipped with infrared sensors and five pairs of detection sensors to prevent tailgating and unauthorized access.

*Robust & Stable Performance
Heavy-duty internal structure with a DC brushless motor rated for 5 million cycles, ensuring long-term reliability.

*Flexible Access Control Integration
Compatible with IC/ID card readers, QR code scanners, and facial recognition systems.

*Multiple Passage Modes
Supports one-way, two-way, and free passage modes for different access control requirements.

*Durable Industrial Construction
Made from powder-coated cold-rolled steel for high corrosion resistance.

*IPX4 Protection Rating
Provides effective protection against water splashes, suitable for semi-outdoor environments.

Enquire Now Saturn-F1000 Series

Add to Cart Saturn-F1000 Series

Compare

Copy Link to Share

Parameters

Audio Indicator

Speaker
Visual Indicator

LED pictograms
Steady blue = Standby, Steady green = Normal use
Steady red = Barrier close
Barrier Movement

Retractable flap barrier (Polycarbonate)
Cabinet Material

Cold-rolled SPCC Steel (GB700)
Certifications

CE, FCC
Chassis Colour

White
Chassis Material

Cold-rolled SPCC Steel (GB700)
Controller

C3, InBio series or or third-party devices
Credential Options

Under mount RFID reader: (support model: ProID Series)
Under mount QR Code Reader: QR500
Top mount facial recognition terminal:
ProFaceX/ Elite Pass/ SpeedFace V5L
Dimension (L*W*H)

1200*734*1020mm
Dimension with Packing (L*W*H)

1345*360*1100mm
Flow Rate

RFID: 30 passengers per minute
QR Code: 30 passengers per minute
Facial Recognition: 15 passengers per minute
IR Sensors

5 pairs
Ingress Protection Rating

IPX4
Lane Width (mm)

550mm
Lid Material

Polycarbonate+2.5D tempered glass
Lid Options Authentication Methods

Streamlined under mount options: RFID / QR Code
Top mount options with mounting pole: Facial Recognition
(compatible with ProFace X / SpeedFace V5L / Elite Pass)
MCBF

5 million
MTTR

Less than 60minutes
Motherboard Communication

Fire alarm Port(Relay)*1, RS485 Port*1,
Motherboard Function

System configuration, access mode configuration, anti-pinch configuration, anti-tailgate configuration etc.
Motor

DC brushless motor
Movement Speed

Less than 1s per movement (open/close timing)
Safety Features

IR sensor safety detection
Logic voltage 24V DC
Voltage free contact input for fire alarm fail state
Auto opening on power off
Security Features

Anti-intrusion, anti-tailgating, wrong way enter alarm,
automatically close door when no one pass
Supported Software

ZKBio CVAccess / ZKBio CVSecurity
(Depends on equipped access controller)
