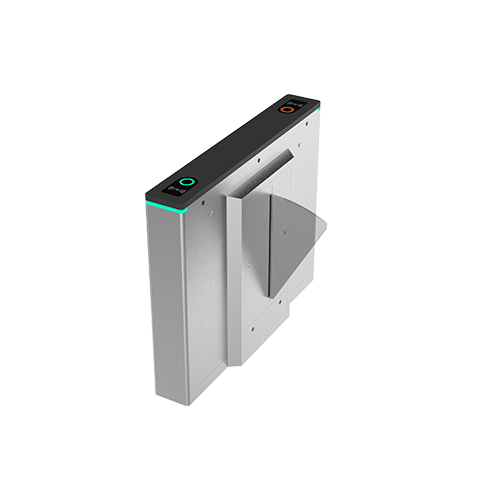

Single Lane Flap Barrier Turnstile
The ZKTeco FBL700 single lane flap barrier turnstile is an elegant cost-effective entrance control system designed for high-traffic volume. The FBL700 is a single lane flap barrier turnstile series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes it highly durable. FBL700 barriers are normally held in a locked position, thus denying access to the secured side. Upon FBL700 ’s reader (RFID and/or fingerprint) positively recognizing a user’s valid access card or fingerprint, its barriers retract upward automatically, thus allowing users passage to the secured side.
Features
Reliability
• SUS304 stainless steel casework ensure long-lasting durability.
• High quality electrical components.
Safety Features
• Barriers retract automatically during emergencies.
• Barriers retract automatically during power outage with battery installed.
• All smooth finish. No exposed screws.
• Ergonomic design makes card and fingerprint. authentication fast & simple for users.
Built-in Reader Integration
• FBL700 series ships already integrated with our customers’ preference for either card or fingerprint access
• control reader. This greatly reduces installation time & expense.
• FBL700 series and associated access control readers are all factory-tested prior to shipping.
•ZKTeco provides true plug&play turnstiles with the lowest possible total cost of ownership in the industry
Simplification
• LCD on the flap barrier control board, easy operation
Model Name
FBL700
Barrier Material
Acrylic
Barrier Movement
Retracting
Cabinet Material
SUS304 Stainless Stee
Dimension (L*W*H)
1200 * 300 * 980 (mm)
Emergency Mode
Support
LED Indicator
Support
Lane Width (mm)
600
Lid Material
SPCC (with black baking paint)
MCBF
5 million
Max. Speed of Throughput
30 people per minute
Opening Noise
≤30dB
Opening Time
0.8s
Power Requirements
AC100 ~ 120V/200 ~ 240V, 50/60Hz
Security Level
Medium
Working Environment
Indoor/Outdoor
Working Humidity
5% ~ 80%
Working Temperature
-28°C ~ 60°C
(Silver and above members can download after logging in)
FBL700 Data Sheet
1.1MB
2024-06-12
