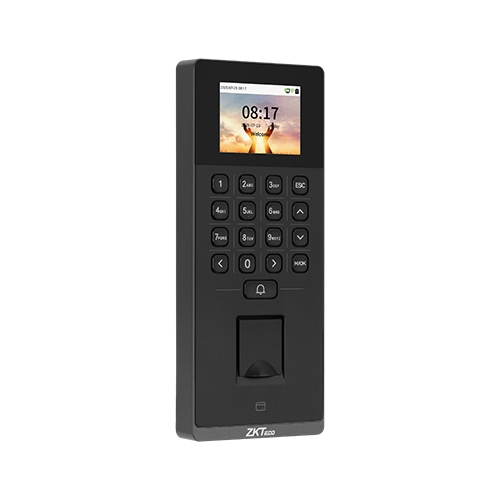

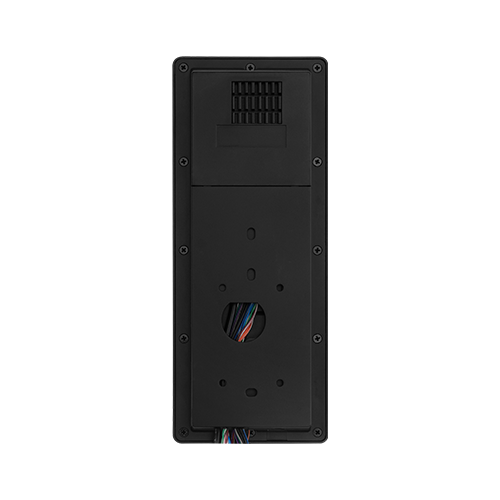

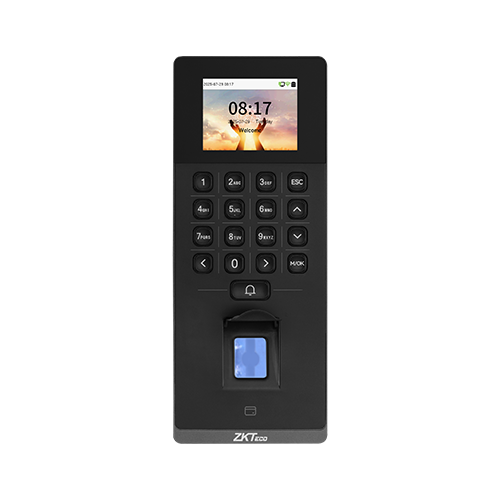

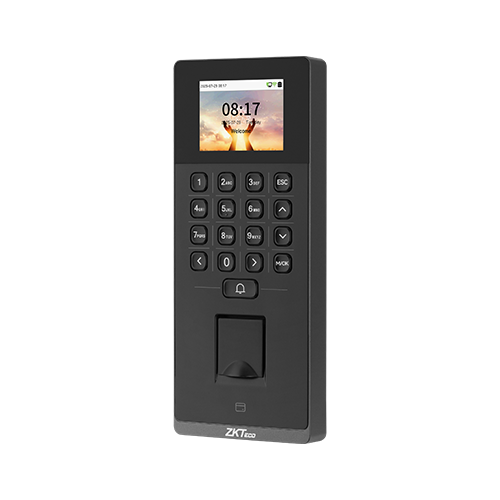

SF1005 Cloud Ready Access Control Terminal Secure & Seamless Access
ZKTeco's SF1005 is a cloud ready fingerprint access control terminal with 2.4" TFT color display. What sets it apart is its multiple authentication methods, including fingerprint, card, and passwords via physical keypad.
Features
• Multiple Verification Methods: card / password / fingerprint (authentication speed less than 0.5 second).
• Features TCP/IP and dual Wi-Fi modes: AP (broadcasts hotspot for app/laptop configuration without network) and client (joins existing Wi-Fi). Easy configuration.
• It supports multi-tech cards: 125 kHz ID (standard), 13.56 MHz IC (optional). It also supports DESFire EV1 / EV2 dual-frequency modules (optional) which fits mixed credential environments without deployment hassle.
• Default BEST Protocol supports or PUSH protocol by manual convertion.
• Supports Doorbell and Wireless Doorbell (Optional). • Attained IP65 protection rating with dustproof and waterproof.
• Optional PoE (IEEE 802.3at) reduces cabling and eliminates separate power adapters, minimizing installation costs.
Display
2.4"@ TFT Color LCD Screen (240 * 320)
Operation System
Linux
Hardware
CPU: Dual Core@1.0GHz
RAM: 128MB; ROM: 256MB
Speaker: 8ohm±15% @1.0W
Physical Keypad: 17 Keys
Fingerprint Sensor: ZK Optical Sensor
Authentication Method
Fingerprint / Card / Password (Physical Keypad)
Fingerprint Template Capacity
3,000 (1: N)
Card Capacity
3,000 (1: N)
User Capacity
3,000 (1: N)
Transaction Capacity
200,000
Password Capacity
6 - 8 digits
Access Control Interface
RS485 (RS485 Card Reader / Biometric Reader)
Algorithm Version
ZKFingerprint V13.0 (Standard) / V10.0 (Optional)
Card Type
ID Card @ 125 kHz (Standard)
IC Card @ 13.56 MHz (Optional)
Optional Multi-Tech Module:
Module1: ID & IC & DESFire EV1 / EV2; (125 kHz & 13.56 MHz Dual Frequency)
Certifications
ISO14001, ISO9001, CE, FCC, RoHS
Communication
TCP/IP*1
Wi-Fi (IEEE802.11b/g/n/ax) @ 2.4 GHz (Optional)
Wiegand (Input or Output)*1
RS485: ZKTeco RS485*1
USB: Type A (USB Drive Only)*1
Aux Inputs*1, Electric Lock *1, Door Sensor*1, Exit Button*1, Alarm*1, Doorbell*1,
12V Output*1
Dimensions
205.7mm * 82.7mm * 33mm (L * W * H)
Ingress Protection Rating
IP65 (waterproof and dustproof)
Installation
Wall-mount (Compatible with Asian Gang Box / Single Gang Box), compatible
with Rots-3 Stand / Rots-02 Bracket
Optional Functions
Wi-Fi (AP Mode), PoE, Wireless Doorbell
Power Supply
DC 12V 1.5A
PoE: IEEE 802.3at (Optional)
Standard Functions
Webserver, ADMS, DST, Up to 14-digit User ID, Access Levels, Groups, Holidays,
Anti-Passback, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic
Status Switch (Effective only under T&A rules), Multiple Verification Methods, AC
PUSH and TA PUSH Protocol Switch, HTTPS / SSH Backend Access, T9 Keyboard
(Input), SRB, Doorbell
Supported Software
On-Premise Software: ZKBio CVSecurity / easy TimePro / Bio TimeCloud
Cloud-based Software: ZKBio Zlink by default (Supports Web Portal & Mobile App)
(Silver and above members can download after logging in)
SF1005 Data Sheet
4.97MB
2026-03-13
